Explorer
inspection camera

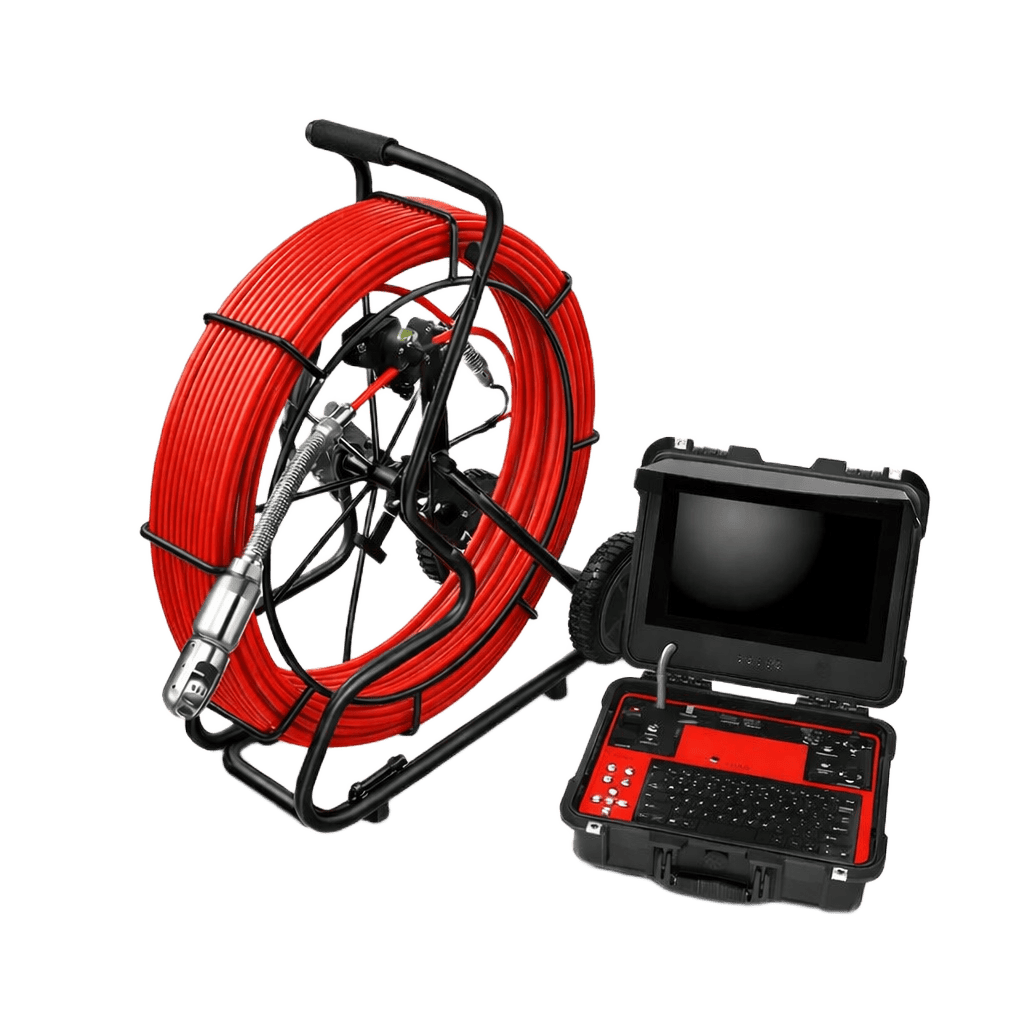

Our camera is an all-in-one system, with the ability to control the direction of the camera head using a joystick configuration on the head module. The camera includes a multifunctional control station with adjustable operation settings. Pan and Tilt through lines with a 33mm & 50mm stainless steel camera head.
The camera comes standard in a 330ft length with an .44" (11 mm) push cable diameter.

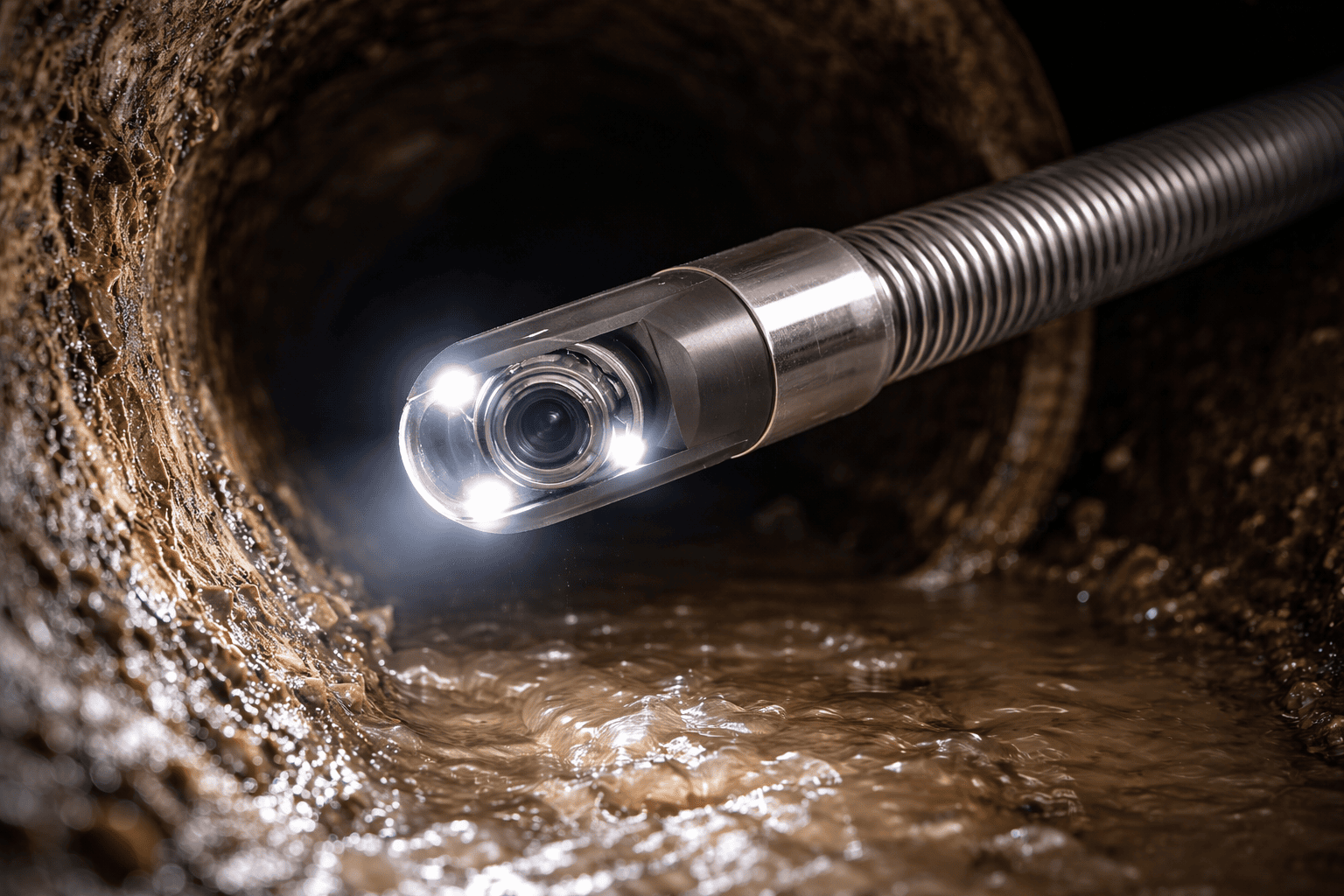

The smaller size allows for the camera to be applicable in 3" straight pipe, and 4"-12" with bends using the 33mm camera head.
Lightweight & versatile, this unit can be used for a multitude of property inspections in
limited access area(s).
Pan & Tilt Precision
The 50mm pan-and-tilt camera head allows operators to rotate and tilt the lens for a full 360° inspection and detailed lateral viewing inside the pipe.
Multiple Camera Head Options

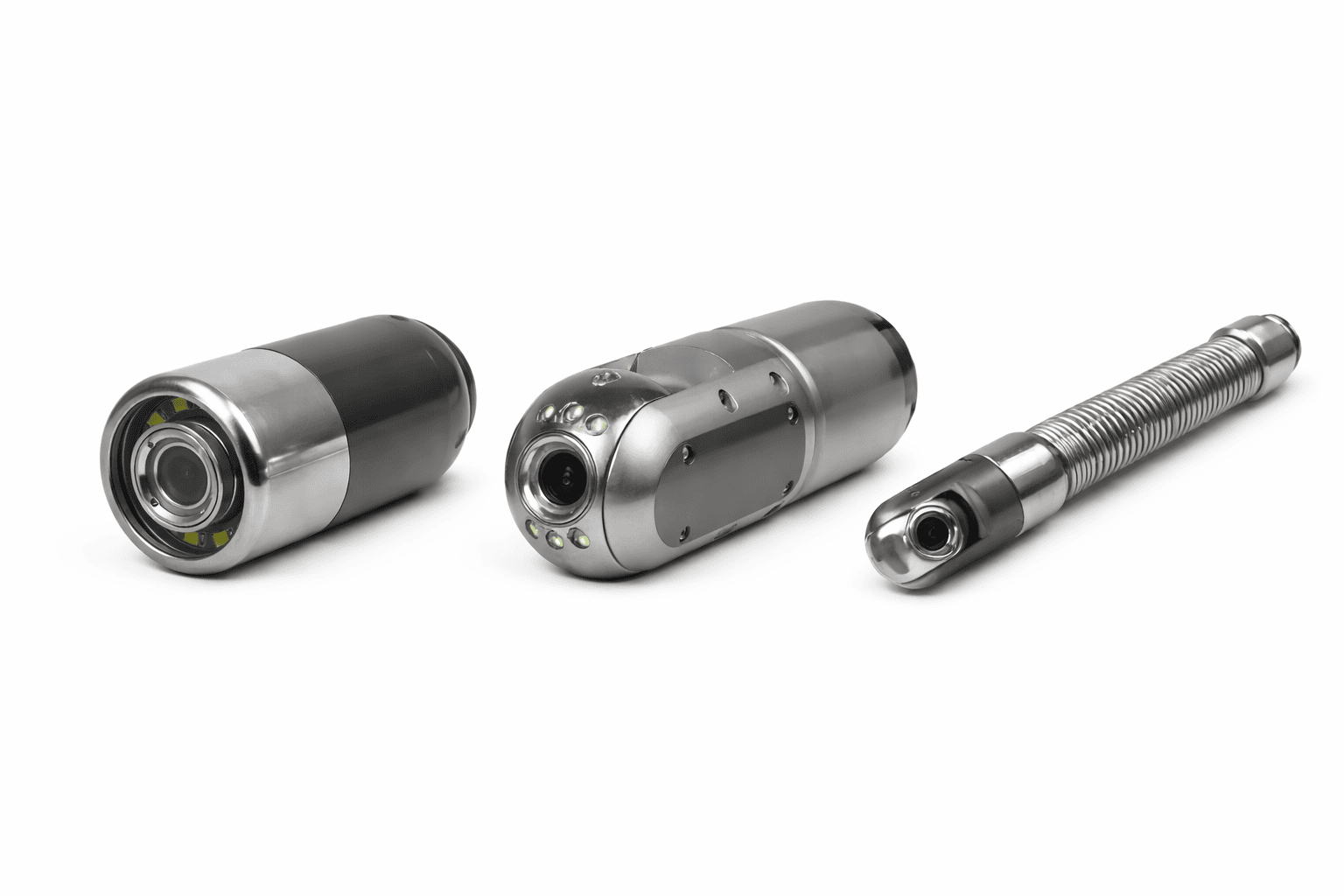

Choose from 33mm and 40mm straight heads or a 50mm pan-and-tilt head to match pipe sizes and inspection requirements.
High-Resolution Imaging
Advanced high-definition video delivers sharp, detailed visuals for accurate pipeline condition assessment.
Flexible Reel Configurations
Available with an 11mm x 330 ft reel or a 9mm x 230 ft reel, the Explorer Camera system adapts to a wide range of jobsite demands.
Universal Pan & Tilt Compatibility
The Explorer Pan & Tilt camera head is fully compatible with both the standard and compact Explorer units, delivering precision 360° rotation, high-resolution imaging, and rugged stainless steel durability for detailed inspections in residential, commercial, and municipal pipelines.
✔ 3" - 12" Pipe Diameter Range (using applicable skids and camera sizes)
✔ Built-in 512Hz Transmitter
✔ HD/DVR 1080HP Video Quality
✔ 9mm & 11mm Cable Reel Lengths (230ft, 330ft)
✔ Combined Weight 52lb
✔ Full Fiberglass Camera Reels

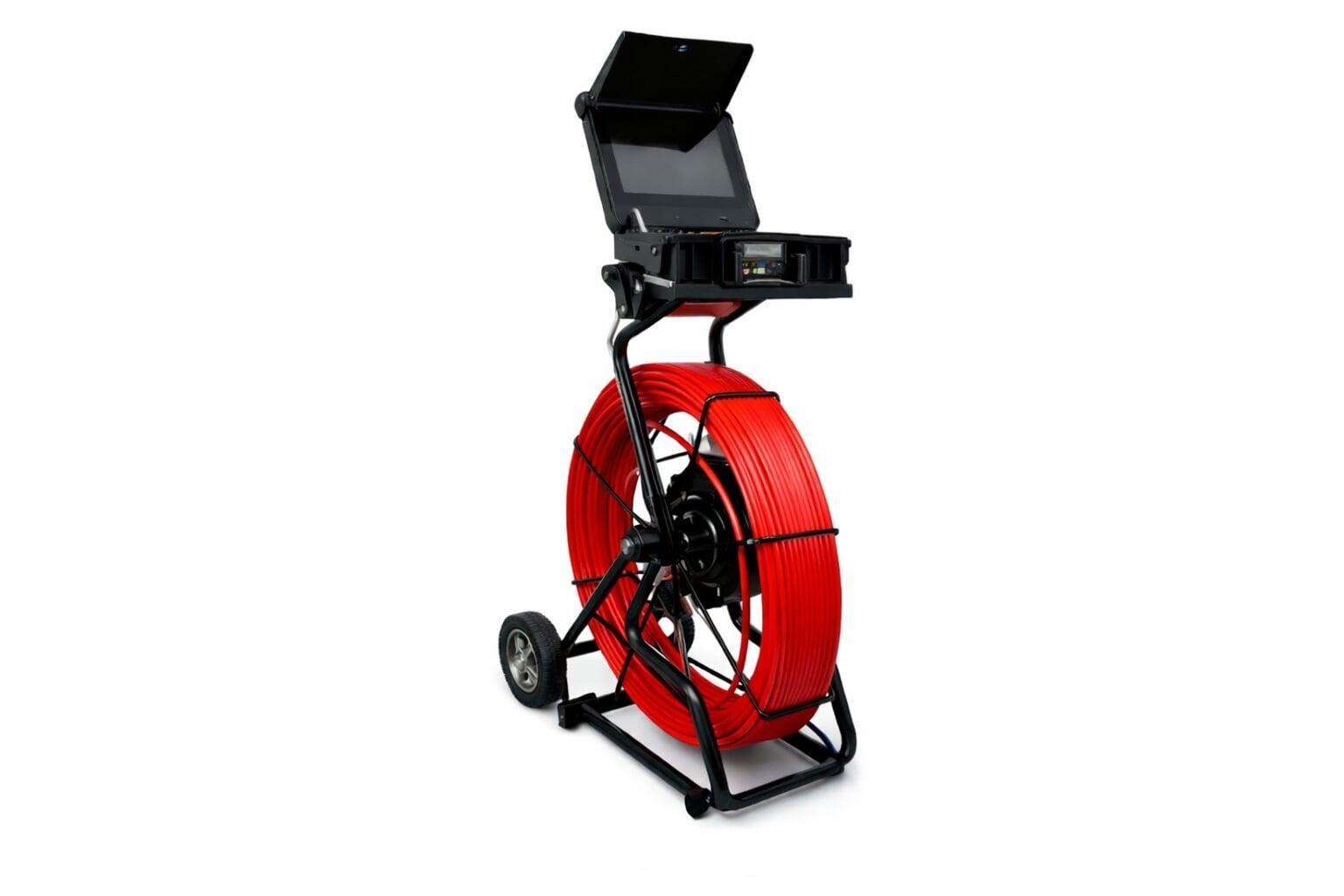

explorer 9mm

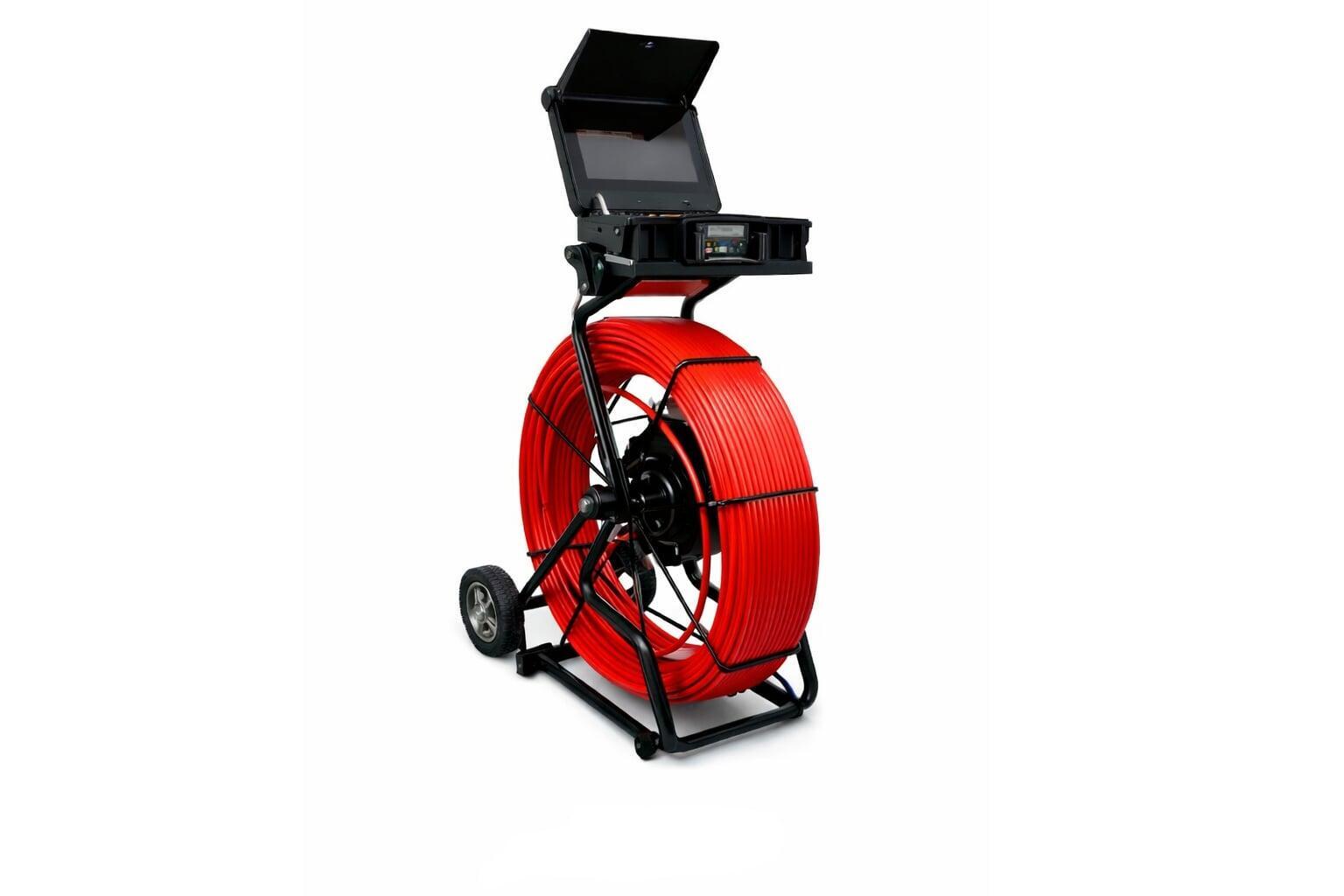

explorer 11mm
✔ High resolution digital monitor
✔ Interchangeable 40mm straight head, 33mm & 50mm pan-tilt heads
✔ Heavy duty steel frame with transport wheels
✔ Integrated recording & usb export capability
✔ 330ft flexible 11mm push rod
✔ Increased flexibility for tight bends
