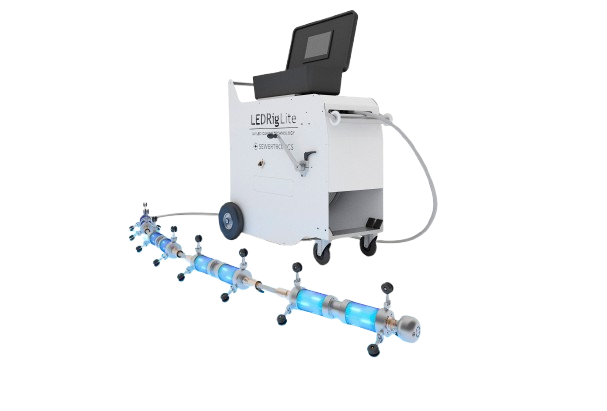

LEDrig UV Curing Machine
Meet the ultimate cure-all for big jobs: the LEDrig!

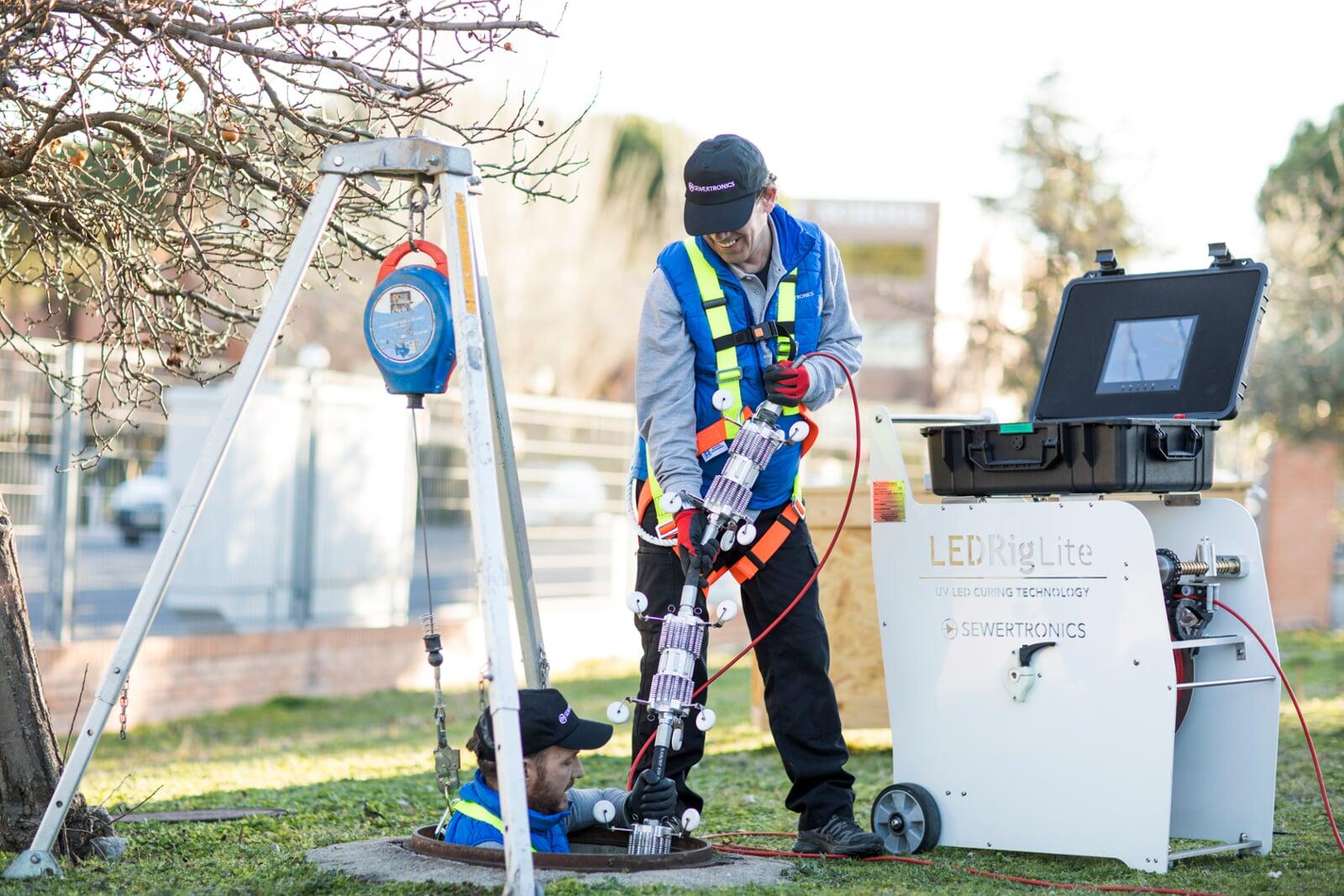

This beast tackles liners from 6″–24″ with ease, powered by a four-module Lightcore pumping out a whopping 2,400 W of UV energy. Its 656 ft motorized reel lets you snake into the deepest runs, while high-def cameras on each end of the Lightcore keep your view crystal-clear from start to finish. And when you need to drop into a manhole, just snap on the Spectra Dive head for perfect manhole liner cures every time—no extra gear required.

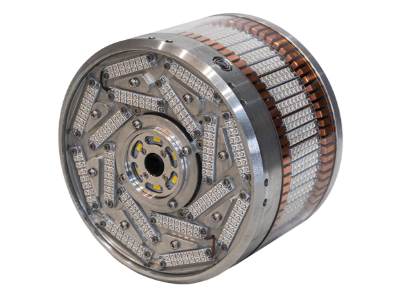

Smart Radiation Modules
Maximizes energy efficiency, minimizes heat, and reduces the size of the power supply unit.
Fast Cure Time
With an average 3-4 minute cure per foot, ensure your projects take minimal time to complete.
Automatic Data Logging
LEDRig’s online reporting feature records all data from each job. Easily accessible via PC or handheld devices, it generates customisable reports with key details like contractor, client, project name, curing parameters, and more. Final reports can be saved as PDFs for easy sharing and record-keeping.
Integrated CCTV Monitoring
Built-in double high-resolution cameras with a 150° field of view lets you verify liner placement in real time on both of the packer ends from the control unit.
Perfect for Large Jobs
Perfectly tailored for heavy duty commercial, municipal, and industrial projects, the LEDrig truly shines on larger diameters 8" - 24". Its motorized cable reel, long cable length and real-time camera feed let you tackle lines faster and more precisely than ever.
✔ Optional Spectra 2400W or Spectra Dive L2400 Head
✔ Internal core temperature & IR sensors within lightheads
✔ Fits through standard access points and manhole openings
✔ Integrated camera in lightheads, allowing for live-feed monitoring from control box
✔ Weight 496lbs
✔ Cable Length 656ft

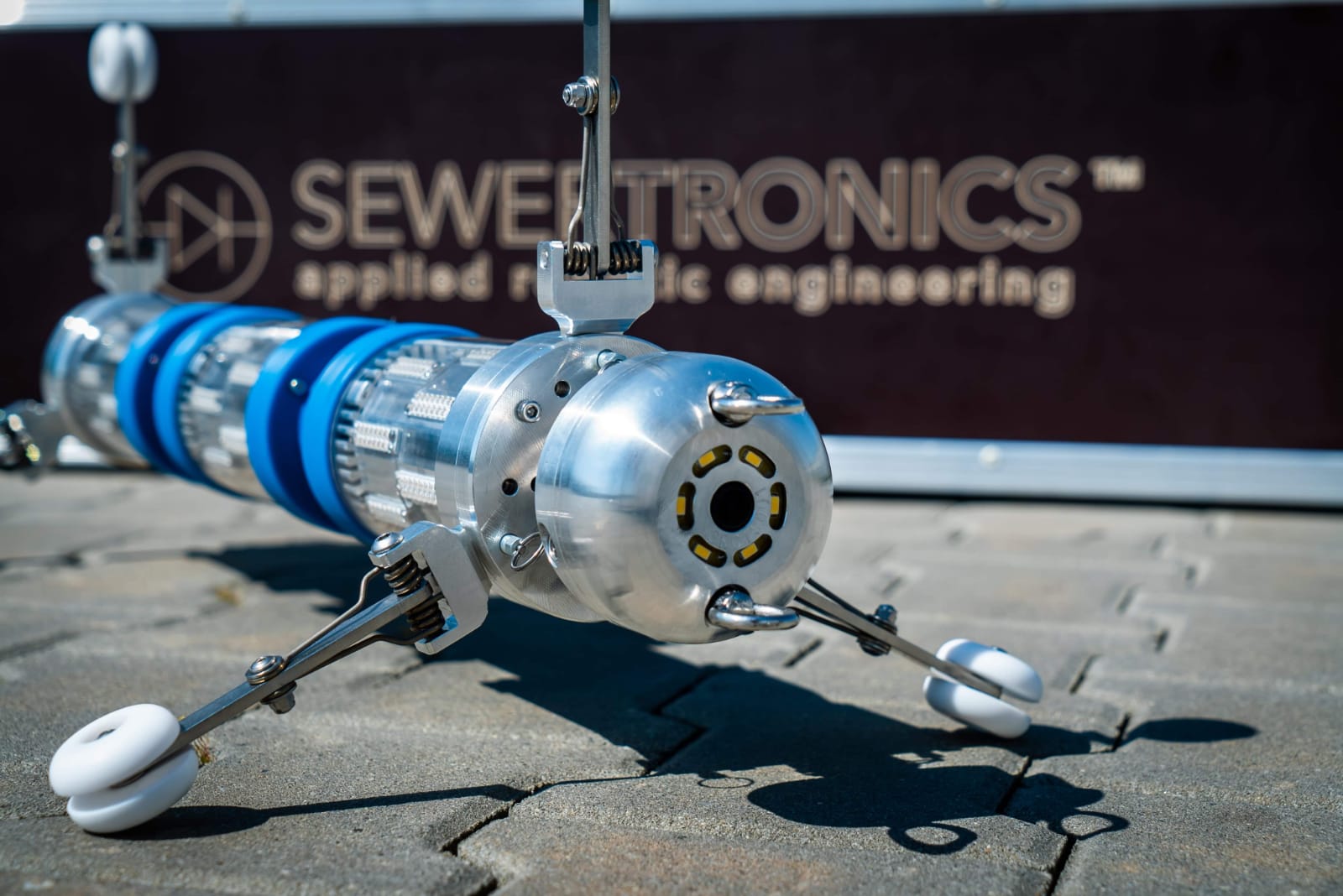

Spectra 2400W Head

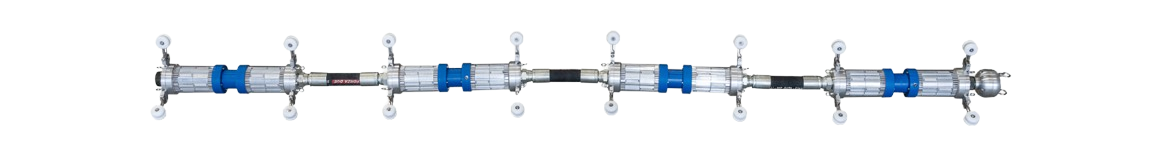

The 2400W Standard LightCore head is your go-to for curing 6″–24″ pipelines with unmatched speed and consistency. Packed with four high-power LED modules that unleash a full 2,400 W of UV energy, it delivers edge-to-edge cures in a single pass—no second rotations needed. Its tough, slim-profile housing slips through pipe runs easily, while the built-in, forward-facing camera gives you real-time visibility of prepreg placement and cure progress. And with tool-free, quick-connect fittings, swapping it onto any LEDrig motorized reel takes just seconds—so you can move from one large-diameter job to the next without missing a beat.
Spectra Dive L2400 Head
