Electric Calibration Roller - 6"
Powerful and portable liner impregnation system designed for efficient CIPP liner wet-out and resin saturation. Built for residential and commercial lining contractors, this electric roller unit ensures consistent resin distribution across the liner for reliable pipe lining installations up to 6" diameter.

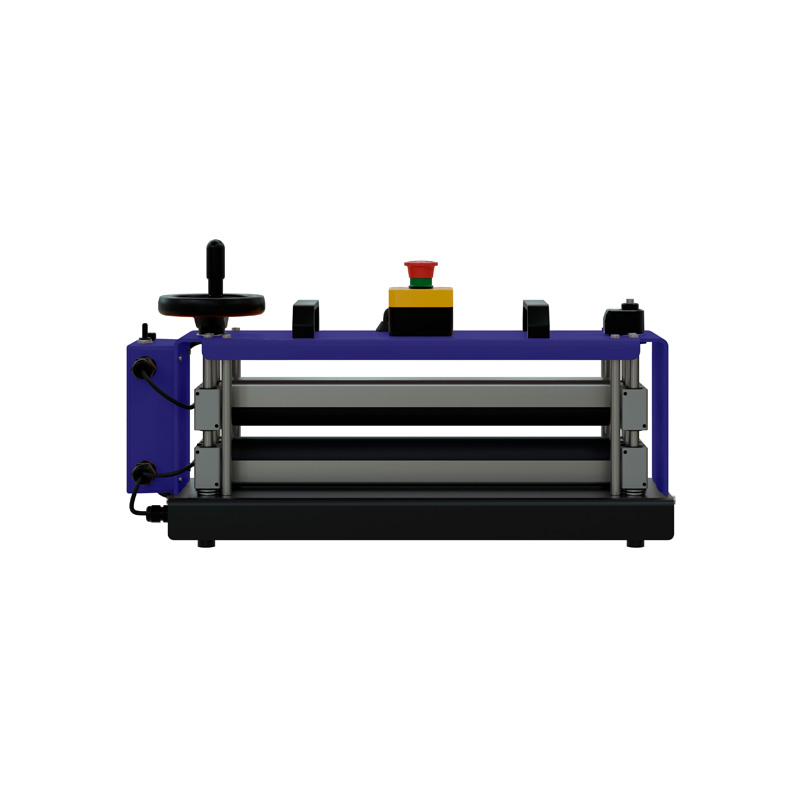

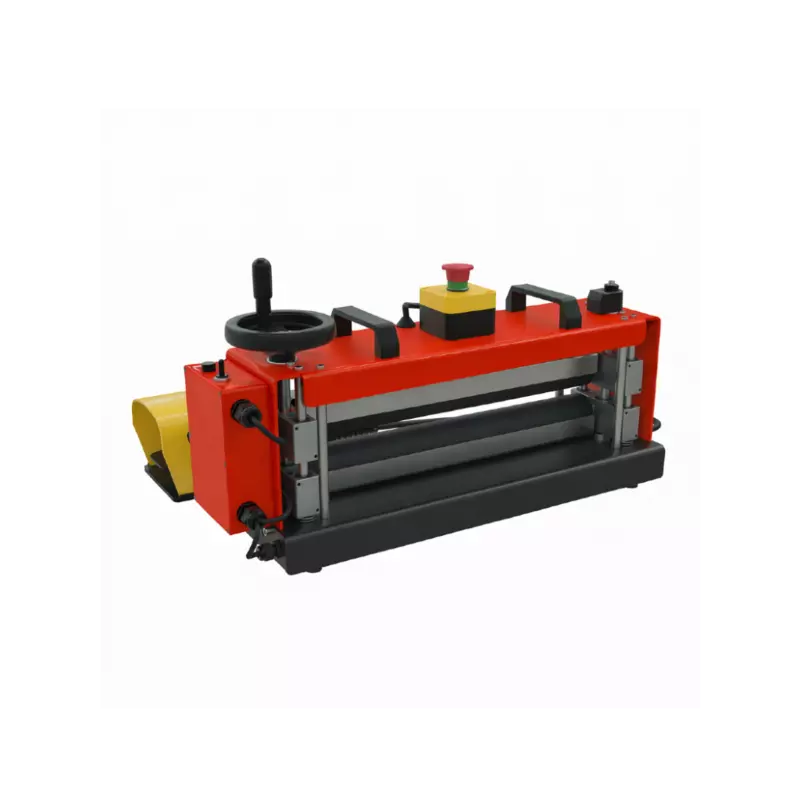

Featuring dual powered rollers with grip coating, the machine provides even pressure and smooth liner movement to achieve uniform resin impregnation throughout the entire liner length. The adjustable roller gap with counter reading allows operators to precisely control liner thickness and resin saturation during wet-out preparation.
The roller system can be easily mounted on work tables, trailers, or service vans, while the foot pedal control and adjustable speed provide hands-free operation for improved workflow and efficiency. Integrated safety features including pressure-limit protection, roller safety covers, and an emergency stop ensure safe operation.

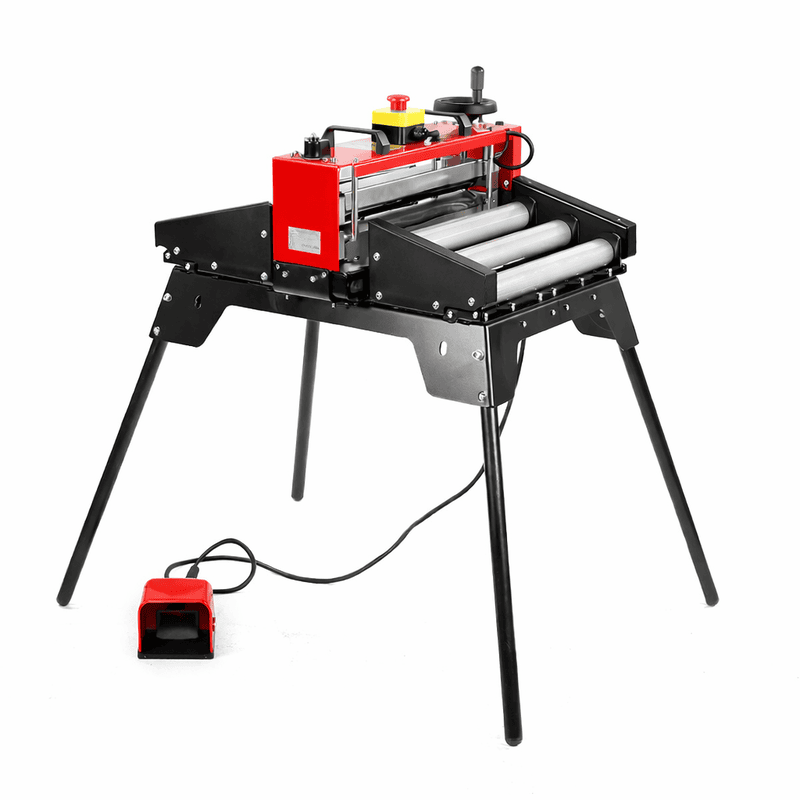

Does not include wet-out table shown in picture*
Technical Specifications:
| Liner Diameter | 1.25" - 6" |
| Power Imput | 110V / 15A |
| Weight | 42.7 lb |
| Length | Approx. 26" |
| Speed Control | Control Knob / Foot Pedal |
| Height with Handle | Approx. 14.2" |
| Material | Plastic / Stainless Steel |
| Nip Gap | 0-20+ mm |
