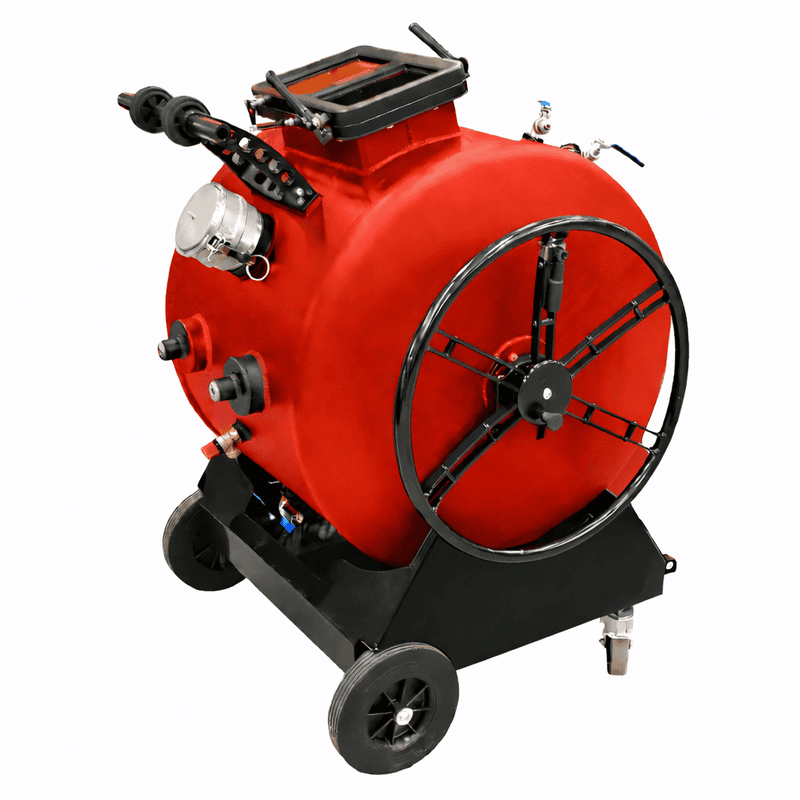

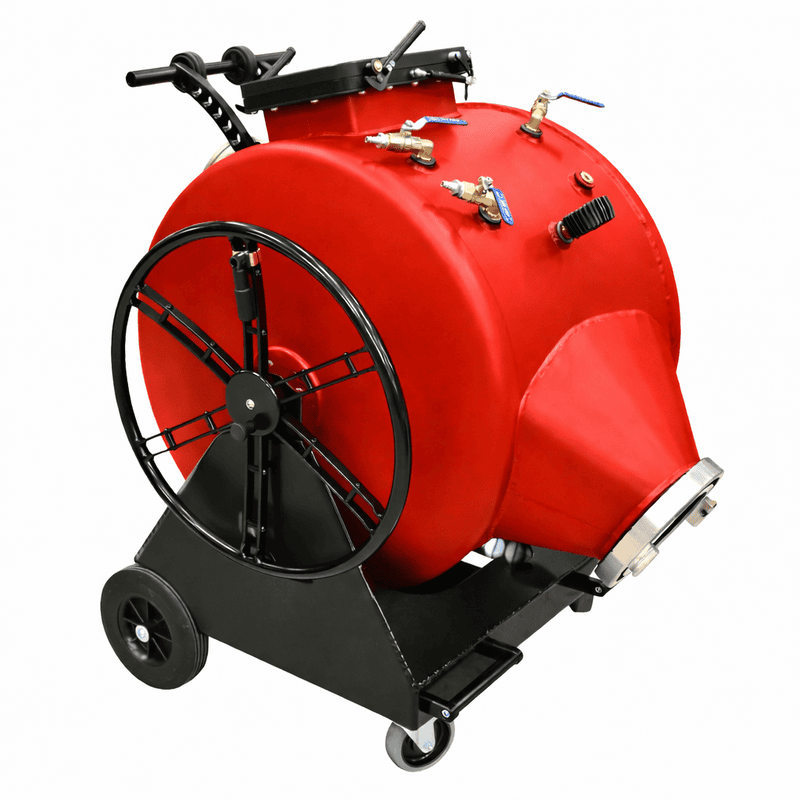

Red Inversion Drum XL

The Red Inversion Drum Extra Large is the largest and highest-capacity inversion system in our lineup, engineered for major commercial, industrial, and municipal CIPP rehabilitation projects. Built for maximum liner capacity and extended inversion runs, this drum is the ideal solution for contractors handling large diameter liners and long-distance installations.

The Extra Large model delivers powerful, consistent air inversion control while maintaining the simplicity and ease of operation found throughout our drum collection. Its oversized inspection window allows operators to clearly monitor liner movement during inversion, ensuring precision, visibility, and confidence on every installation. The secure, easy-locking window system provides a tight seal under pressure while allowing fast access when needed.

Constructed with heavy-duty stainless steel and mounted on a stable, maneuverable frame, the Red Inversion Drum Extra Large combines strength with practical mobility. Despite its increased liner capacity, it remains straightforward to position and operate, making it a dependable solution for large-scale trenchless rehabilitation projects. This model is the go-to choice for contractors who require maximum performance, durability, and reliability without added complexity.

Main Features:

Stainless Steel Build: Ensures long-term durability and resistance to wear in demanding environments.
Inspection Window: Provides clear visibility to monitor liner inversion in real time.
Pressure Regulation Valve: Enables smooth and controlled liner deployment.
Ergonomic Drum Rotation System: Facilitates consistent and even inversion.
Multiple Nozzle Sizes Available: Supports a wide range of liner diameters from 2" to 24".
Compatible with Various Curing Methods: Suitable for ambient cure, hot water, steam, and UV curing processes.

Specifications:

Drum Width: 36.6"
Height: 48"
Weight: 205 lbs
Liner Intake: 10" / 100 ft
Max Pressure: 22 PSI
